8-Input Presentation Matrix Switcher/Scaler with Seamless Video Cuts

8-Input Presentation Matrix Switcher/Scaler with Seamless Video Cuts

  • Overview
  • Applications
  • Resources

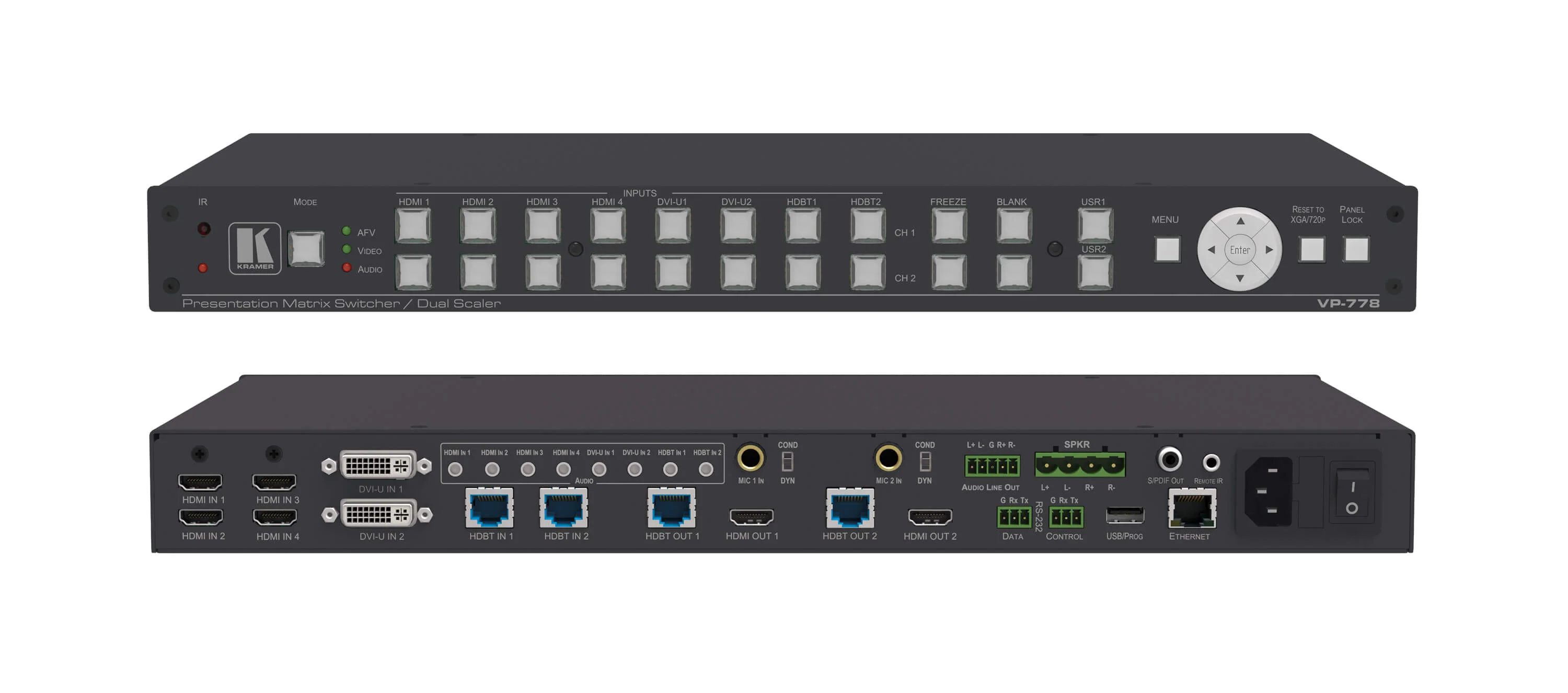

  • VP-778 is a presentation matrix switcher/scaler that can be configured as a single 4K output (4K@30Hz UHD [3840x2160]) or dual HD scaler with full PiP capabilities. It can scale to two independent HDMI outputs, each with a parallel HDBaseT output. VP-778 includes both analog and embedded audio inputs and outputs and audio DSP features. It also features two microphone inputs and digital & analog balanced stereo and amplified speaker outputs. VP-778 can be controlled using built-in web pages, RS-232 and IR.

    • Pix Perfect Scaling Å¡ - Stateoftheart Kramer technology.
    • KIIT XL PictureinPicture Image Insertion Technology Å¡ Ultrastable pictureinpicture, pictureandpicture and splitscreen.
    • Seamless Video Switching Å¡Swap or follow (transition type) and cut or fade (transition effect).
    • Dual Scalers  LiveÅ¡ seamless transitions with two independent outputs.
    • 8 Input Buttons per Channel.
    • Main and PiP Window Customization Å¡ In overlay mode.
    • Projection Setups Å¡ Front, back, ceiling front and ceiling back.
    • Output Resolutions Å¡ Up to 4K@30Hz UHD (3840x2160) in singlewindow mode, HDTV and computer graphics resolutions with selectable refresh rates.
    • Inputs Å¡ Choice of HDMI, VGA, YUV, or CV on two DVIU inputs, 4 HDMI and 2 HDBaseT inputs.
    • Two Programmable User Buttons Å¡For passing serial commands.
    • Serial Comms Matrix Å¡ Up to eight sets of configurable unidirectional connections for passing serial data from source to destination.
    • HDBaseT Technology Å¡ Max. data rate of 6.75Gbps (2.25Gbps per graphic channel).
    • System Range (HDBaseT) Å¡ Up to 130m (430ft) in normal mode; up to 180m (590ft) in ultramode (1080p @60Hz @24bpp) when using BCUNIKAT cables.
    • Cables Å¡For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VP778.
    • Audio Å¡Balanced stereo audio inputs, two microphone inputs, digital stereo and balanced stereo outputs, input/output audio level adjustment, and audio DSP.
    • Builtin 2x10W Power Amplifier Å¡Speaker outputs on a 4pin terminal block connector.
    • Microphone Å¡ - Talkover or mix modes.
    • Auto Switching Å¡ - Automatically scans inputs based on a predefined priority and selects first live input found or last connected.
    • AudioFollowVideo (AFV) & Breakaway.
    • Advanced Deinterlacing Å¡ - 3D comb filtering, film mode, diagonal correction, and motion detection.
    • Multiple Aspect Ratio Selections.
    • Builtin ProcAmp Å¡ - With enhanced functions such as color correction, gamma, dither, and noise reduction.
    • Power Management Modes Å¡ - Save energy and money.
    • HDCP Compliance.
    • Luma Å¡ - and ChromaKeying.
    • Advanced EDID Management Å¡ - Native resolution and color depth modeline per input.
    • Builtin Test Patterns Å¡ - For screen setup and alignment.
    • Output EDID Analysis Å¡ - For optimal scaling.
    • Input & Output Color Space Control.
    • HDMI Deep Color.
    • OnScreen Display (OSD) Å¡ - Provides easy setup and adjustment.
    • NonVolatile Memory Å¡ - Retains settings.
    • Firmware Upgrade Input Å¡ - Via USB memory stick.
    • Various Control Options Å¡ - Front panel buttons, Ethernet web page, RS485, IR, RS232 serial commands transmitted by a touch screen system, PC, or other serial controller.

  • Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging

    Any application where high quality switching and/or scaling of multiple and different video signals is required for projection purposes

  • Datasheet

$1,185.60

Original: $3,952.00

-70%
8-Input Presentation Matrix Switcher/Scaler with Seamless Video Cuts—

$3,952.00

$1,185.60

Product Information

Shipping & Returns

Description

  • Overview
  • Applications
  • Resources

  • VP-778 is a presentation matrix switcher/scaler that can be configured as a single 4K output (4K@30Hz UHD [3840x2160]) or dual HD scaler with full PiP capabilities. It can scale to two independent HDMI outputs, each with a parallel HDBaseT output. VP-778 includes both analog and embedded audio inputs and outputs and audio DSP features. It also features two microphone inputs and digital & analog balanced stereo and amplified speaker outputs. VP-778 can be controlled using built-in web pages, RS-232 and IR.

    • Pix Perfect Scaling Å¡ - Stateoftheart Kramer technology.
    • KIIT XL PictureinPicture Image Insertion Technology Å¡ Ultrastable pictureinpicture, pictureandpicture and splitscreen.
    • Seamless Video Switching Å¡Swap or follow (transition type) and cut or fade (transition effect).
    • Dual Scalers  LiveÅ¡ seamless transitions with two independent outputs.
    • 8 Input Buttons per Channel.
    • Main and PiP Window Customization Å¡ In overlay mode.
    • Projection Setups Å¡ Front, back, ceiling front and ceiling back.
    • Output Resolutions Å¡ Up to 4K@30Hz UHD (3840x2160) in singlewindow mode, HDTV and computer graphics resolutions with selectable refresh rates.
    • Inputs Å¡ Choice of HDMI, VGA, YUV, or CV on two DVIU inputs, 4 HDMI and 2 HDBaseT inputs.
    • Two Programmable User Buttons Å¡For passing serial commands.
    • Serial Comms Matrix Å¡ Up to eight sets of configurable unidirectional connections for passing serial data from source to destination.
    • HDBaseT Technology Å¡ Max. data rate of 6.75Gbps (2.25Gbps per graphic channel).
    • System Range (HDBaseT) Å¡ Up to 130m (430ft) in normal mode; up to 180m (590ft) in ultramode (1080p @60Hz @24bpp) when using BCUNIKAT cables.
    • Cables Å¡For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VP778.
    • Audio Å¡Balanced stereo audio inputs, two microphone inputs, digital stereo and balanced stereo outputs, input/output audio level adjustment, and audio DSP.
    • Builtin 2x10W Power Amplifier Å¡Speaker outputs on a 4pin terminal block connector.
    • Microphone Å¡ - Talkover or mix modes.
    • Auto Switching Å¡ - Automatically scans inputs based on a predefined priority and selects first live input found or last connected.
    • AudioFollowVideo (AFV) & Breakaway.
    • Advanced Deinterlacing Å¡ - 3D comb filtering, film mode, diagonal correction, and motion detection.
    • Multiple Aspect Ratio Selections.
    • Builtin ProcAmp Å¡ - With enhanced functions such as color correction, gamma, dither, and noise reduction.
    • Power Management Modes Å¡ - Save energy and money.
    • HDCP Compliance.
    • Luma Å¡ - and ChromaKeying.
    • Advanced EDID Management Å¡ - Native resolution and color depth modeline per input.
    • Builtin Test Patterns Å¡ - For screen setup and alignment.
    • Output EDID Analysis Å¡ - For optimal scaling.
    • Input & Output Color Space Control.
    • HDMI Deep Color.
    • OnScreen Display (OSD) Å¡ - Provides easy setup and adjustment.
    • NonVolatile Memory Å¡ - Retains settings.
    • Firmware Upgrade Input Å¡ - Via USB memory stick.
    • Various Control Options Å¡ - Front panel buttons, Ethernet web page, RS485, IR, RS232 serial commands transmitted by a touch screen system, PC, or other serial controller.

  • Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging

    Any application where high quality switching and/or scaling of multiple and different video signals is required for projection purposes

  • Datasheet
