3GSDI Extender via One LC Singlemode or Multimode Fiber Optic Cable, 12VDC, 1A

Product Datasheet

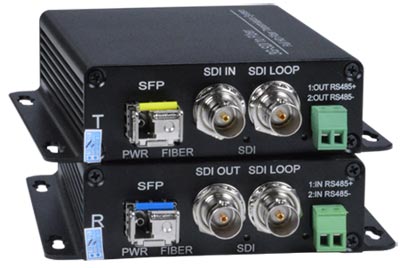

The XTENDEX SD/HD/3G-SDI Extender via Fiber Optic Cable locates up to two displays from a SD/HD/3G-SDI video source up to 12.4 miles (20 kilometers) away using a single singlemode LC fiber optic strand and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a SD/HD/3G-SDI video source and a local loop out, and a receiver that connects to up to two SD/HD/3G-SDI displays.

• Signal transmission via one singlemode or multimode LC fiber optic cable.
• Using singlemode 9-micron cable, extend to 12.4 miles (20 kilometers).
• Using multimode 50-micron cable, extend to 1,640 feet (500 meters).
• Supports HDTV resolutions to 1080p @60Hz.
• Simultaneously transmits to two SD/HD/3G-SDI displays at the receiver.
• Supports a local display via loop out SDI connector.
• Supports unidirectional RS485 from the receiver to the transmitter.
• Plug-and-play functionality no software needed.
• Low RFI/EMI for sensitive applications.
• Cables can be installed in conduit prior to extender installation.
• Integrated mounting brackets for easy surface/wall mounting.
• Available power options: 5VDC or 12VDC
