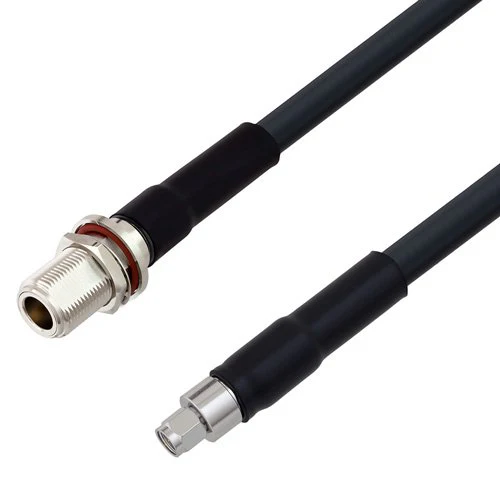

Low Loss N Female Bulkhead to SMA Male Cable Coax 1.5 FT w/ HeatShrink
Product Datasheet
L-com's LCCA30312-FT1.5 is a low loss N female bulkhead to SMA male cable assembly using LMR-400-DB coax, 1.5 FT with Times Microwave components with heatshrink and ships same-day. The LMR-400-DB coax of this N cable uses the PE (F) dielectric with a VoP of 85%, resulting in very low insertion loss compared to solid dielectrics. These flexible RF cable assemblies are ideal for applications where flexure is required. Our L-com N to SMA cable assembly has a female to male gender configuration with flexible LMR-400-DB series coax and operates to 6 GHz. The double shield of this N cable is layered by tinned copper braid over aluminum tape providing shielding effectiveness greater than 90dB. L-com's RF cable assembly with N bulkhead interface enables system designers to have external connections on their product enclosures or to be used for other rack mount and panel mount applications. *LMR is a trademark of Times Microwave Systems. Custom versions of this N female to N male cable, along with the rest of L-com's other RF assemblies, can also be built and shipped same day. Other available RF cable assembly value added services from L-com include connector orientation or clocking, heat shrink booting and custom labeling. RF testing can also be performed to document the electrical performance of your cable assembly. Contact a sales representative for testing or custom RF cable quotes. Part number LCCA30312-FT1.5 L-com Low Loss N Female Bulkhead to SMA Male Cable Assembly using LMR-400-DB Coax, 1.5 FT with Times Microwave Components with HeatShrink data sheet PDF includes details of the RF product specifications, CAD drawing(s) and dimensions below. Features and Applications Using Times Microwave Components, Max Frequency 6 GHz, Shielding Effectivity > 90 dB, 85% Phase Velocity, PE Jacket, Low Insertion Loss, Bend Radius of 4 Inches, General Purpose, Laboratory Use, Antenna Installations, Land Mobile Radio & Other Communication Systems, Cellular & Wi-Fi Systems,$54.78
Low Loss N Female Bulkhead to SMA Male Cable Coax 1.5 FT w/ HeatShrink—
$54.78
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Datasheet
L-com's LCCA30312-FT1.5 is a low loss N female bulkhead to SMA male cable assembly using LMR-400-DB coax, 1.5 FT with Times Microwave components with heatshrink and ships same-day. The LMR-400-DB coax of this N cable uses the PE (F) dielectric with a VoP of 85%, resulting in very low insertion loss compared to solid dielectrics. These flexible RF cable assemblies are ideal for applications where flexure is required. Our L-com N to SMA cable assembly has a female to male gender configuration with flexible LMR-400-DB series coax and operates to 6 GHz. The double shield of this N cable is layered by tinned copper braid over aluminum tape providing shielding effectiveness greater than 90dB. L-com's RF cable assembly with N bulkhead interface enables system designers to have external connections on their product enclosures or to be used for other rack mount and panel mount applications. *LMR is a trademark of Times Microwave Systems. Custom versions of this N female to N male cable, along with the rest of L-com's other RF assemblies, can also be built and shipped same day. Other available RF cable assembly value added services from L-com include connector orientation or clocking, heat shrink booting and custom labeling. RF testing can also be performed to document the electrical performance of your cable assembly. Contact a sales representative for testing or custom RF cable quotes. Part number LCCA30312-FT1.5 L-com Low Loss N Female Bulkhead to SMA Male Cable Assembly using LMR-400-DB Coax, 1.5 FT with Times Microwave Components with HeatShrink data sheet PDF includes details of the RF product specifications, CAD drawing(s) and dimensions below. Features and Applications Using Times Microwave Components, Max Frequency 6 GHz, Shielding Effectivity > 90 dB, 85% Phase Velocity, PE Jacket, Low Insertion Loss, Bend Radius of 4 Inches, General Purpose, Laboratory Use, Antenna Installations, Land Mobile Radio & Other Communication Systems, Cellular & Wi-Fi Systems,
