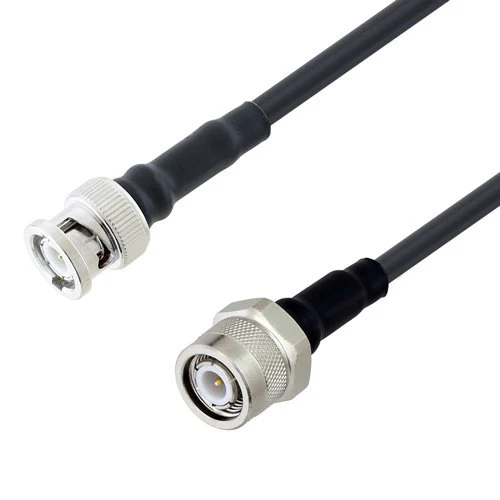

Low Loss BNC Male to TNC Male Cable using LMR-200 Coax, 3 FT

Product Datasheet

L-com's LCCA30243-FT3 is a low loss BNC male to TNC male cable assembly using LMR-200 coax, 3 FT with Times Microwave components and ships same-day. The LMR-200 coax of this BNC cable uses the PE (F) dielectric with a VoP of 83%, resulting in very low insertion loss compared to solid dielectrics. These flexible RF cable assemblies are ideal for applications where flexure is required. Our L-com BNC to TNC cable assembly has a male to male gender configuration with flexible LMR-200 series coax and operates to 4 GHz. The double shield of this BNC cable is layered by tinned copper braid over aluminum tape providing shielding effectiveness greater than 90dB. *LMR  is a trademark of Times Microwave Systems. Custom versions of this BNC male to BNC male cable, along with the rest of L-com's other RF assemblies, can also be built and shipped same day. Other available RF cable assembly value added services from L-com include connector orientation or clocking, heat shrink booting and custom labeling. RF testing can also be performed to document the electrical performance of your cable assembly. Contact a sales representative for testing or custom RF cable quotes. Part number LCCA30243-FT3 L-com Low Loss BNC Male to TNC Male Cable Assembly using LMR-200 Coax, 3 FT with Times Microwave Components data sheet PDF includes details of the RF product specifications, CAD drawing(s) and dimensions below. Features and Applications Using Times Microwave Components, Max Frequency 4 GHz, Shielding Effectivity > 90 dB, 83% Phase Velocity, PE Jacket, Low Insertion Loss, Bend Radius of 2 Inches, General Purpose, Laboratory Use, Antenna Installations, Land Mobile Radio & Other Communication Systems, Cellular & Wi-Fi Systems,
