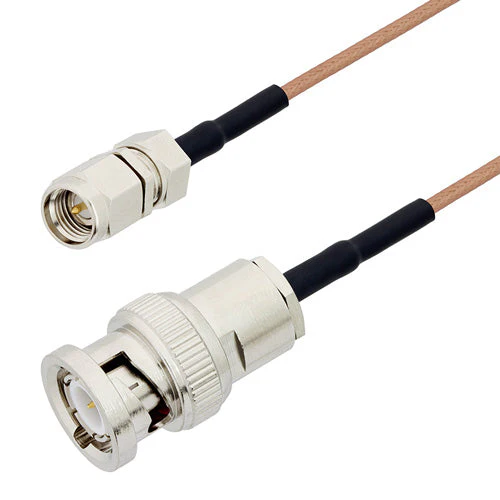

SMA Male to BNC Male Cable Assembly using RG178 Coax, 10 FT

Product Datasheet

SMA Male to BNC Male Cable Assembly using RG178 Coax, 10 FT

L-com SMA male to BNC male cable assembly using RG178 coax, 10 FT. This high quality SMA cable is part of a large selection of coaxial cable assemblies for RF / microwave. LCCA30070-FT10 SMA cables from L-com are a great choice for solutions requiring high quality. These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications.

These RF coaxial cable assemblies are built with SMA connection on one end and BNC connection on the other. This SMA to BNC cable from L-com has a male to male gender combination. Our SMA male to BNC male coaxial assembly part number LCCA30070-FT10 can also be known as SMA plug to BNC plug cable assembly when using alternate gender names.

SMA plug to BNC plug cable assembly LCCA30070-FT10 is manufactured with a flexible coax. These flexible SMA to BNC cable assemblies use RG178 coax and are single shielded.

Maximum frequency for these SMA to BNC M/M cables is 1 GHz. This product can also be called a BNC male to SMA male cable assembly because it can be used in the opposite direction.

Features

• Max Frequency 1 GHz
• 70% VoP
• FEP Jacket
• Heat Shrink Strain Relief

Application

• General Purpose
• Laboratory Use
