9 dB Fixed Attenuator 75 Ohm F Male to F Female Brass Tri-Metal Body Rated to 2 Watts Up to 3 GHz

Product Datasheet

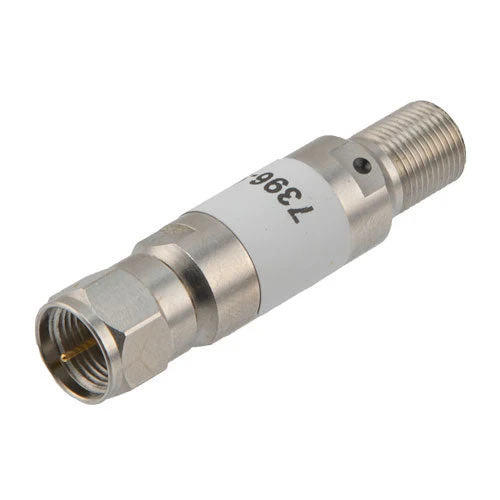

L-coms LCAT7396-9 fixed attenuator is constructed to precise RF and microwave industry specifications and operates at 0 GHz to 3 GHz frequency range. This fixed attenuator is suitable for broadcasting, video signal transmission, RF testing, prototyping, and production system applications. The F male to F female attenuator is rated for an RF attenuation value of 9dB.

The L-com 75 Ohms fixed attenuator has a power rating of 2 Watts along with in-series F male to F female connectors. The LCAT7396-9 comes with a mechanical specification of 2.02-inch length, 0.43-inch width, and 0.065 lbs. weight. Our RF microwave attenuator offers a VSWR (Voltage Standing Wave Ratio) as good as 1.3:1. This straight attenuator is built with a brass body and Tri-Metal plating and is REACH and RoHS compliant.

This RF microwave attenuator has in-series threaded male and female connectors with a standard polarity. Our LCAT7396-9 fixed attenuator operating at 0 GHz to 3 GHz frequency range can prevent signal overload in amplifiers, receivers, and detectors, adjusting the signal level to an optimal range. The operating temperature range of this fixed attenuator is -55 to 80 deg C.

Features

• DC to 3 GHz Frequency Range
• Attenuation 9±0.5 dB
• Max Power 2 Watts (CW)
• VSWR < 1.3:1

Application

• Instrumentation
• Cable TV and Video Distribution
• Prototyping and characterization
• Production systems
