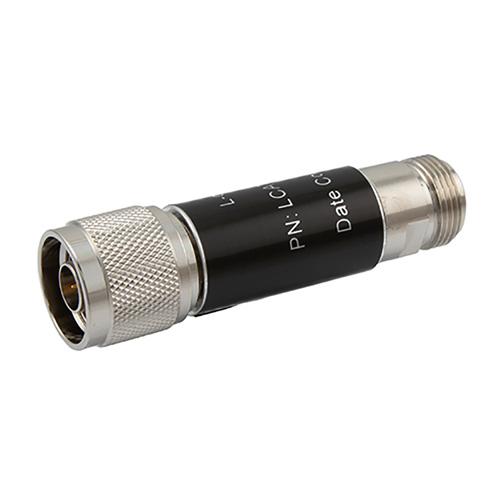

DC-6GHz 2W RF fixed attenuator 5dB, N-type(M,F)
Product Datasheet
LCAT1004-05 is a 5dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 6GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other.
Features
- Input Power 2W max
- Attenuation accuracy 5 0.5dB
- Frequency range from DC to 6GHz
- Operating temp range from -55 to 125C
- VSWR <1.30
Application
- Instrumentation
- Precision measurements
- Prototyping and characterization
- Production systems
- RF test systems
$22.09
Original: $73.64
-70%DC-6GHz 2W RF fixed attenuator 5dB, N-type(M,F)—
$73.64
$22.09Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Datasheet
LCAT1004-05 is a 5dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 6GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other.
Features
- Input Power 2W max
- Attenuation accuracy 5 0.5dB
- Frequency range from DC to 6GHz
- Operating temp range from -55 to 125C
- VSWR <1.30
Application
- Instrumentation
- Precision measurements
- Prototyping and characterization
- Production systems
- RF test systems
