20 dB Fixed Attenuator SMA Male To SMA Female Up

20 dB Fixed Attenuator SMA Male To SMA Female Up

Product Datasheet

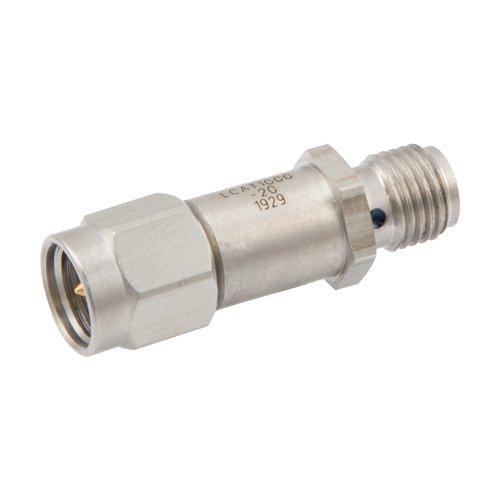

LCAT1000 is a RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • SMA connector interface
  • VSWR < 1.3:1
  • Attenuation 20 0.5 dB
  • DC to 6 GHz Frequency Range
  • Max Power 2 Watt (CW)

Application

  • Production systems
  • Prototyping and characterization
  • RF test systems
  • Instrumentation
  • Precision measurements
$22.09

Original: $73.64

-70%
20 dB Fixed Attenuator SMA Male To SMA Female Up—

$73.64

$22.09

Product Information

Shipping & Returns

Description

Product Datasheet

LCAT1000 is a RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • SMA connector interface
  • VSWR < 1.3:1
  • Attenuation 20 0.5 dB
  • DC to 6 GHz Frequency Range
  • Max Power 2 Watt (CW)

Application

  • Production systems
  • Prototyping and characterization
  • RF test systems
  • Instrumentation
  • Precision measurements
