3 dB Fixed Attenuator SMA Male To SMA Female Up To
Product Datasheet

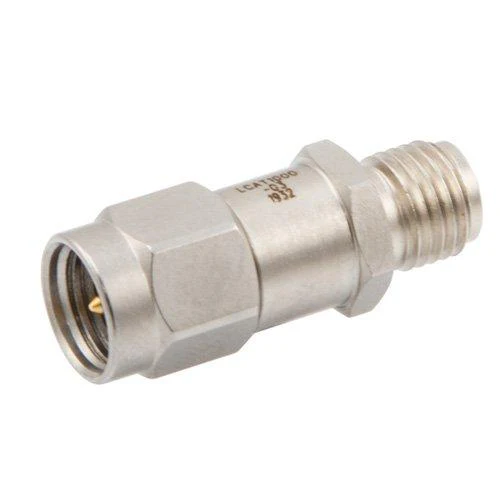

LCAT1000 is a RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.
Features
- Attenuation 3 0.5 dB
- Max Power 2 Watt (CW)
- VSWR < 1.2:1
- DC to 6 GHz Frequency Range
- SMA connector interface
Application
- Instrumentation
- Precision measurements
- Production systems
- Prototyping and characterization
- RF test systems
$16.70
Original: $55.68
-70%3 dB Fixed Attenuator SMA Male To SMA Female Up To—
$55.68
$16.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Datasheet
LCAT1000 is a RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.
Features
- Attenuation 3 0.5 dB
- Max Power 2 Watt (CW)
- VSWR < 1.2:1
- DC to 6 GHz Frequency Range
- SMA connector interface
Application
- Instrumentation
- Precision measurements
- Production systems
- Prototyping and characterization
- RF test systems
