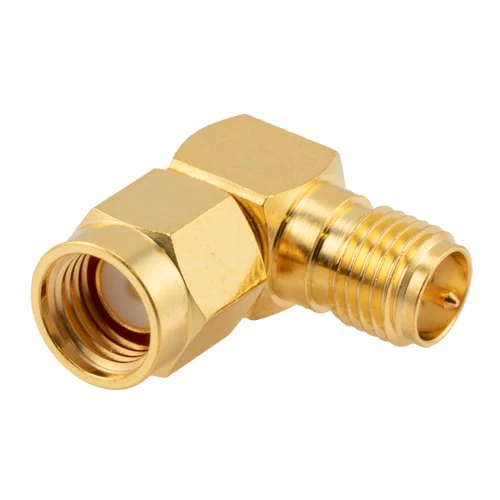

Coaxial Right Angle Adapter, RP-SMA Male / Female
Product Datasheet
These L-com RF Coaxial Adapters are used to interface between SMA to SMA with coaxial connections. The LCAD30036 is a right angle adapter with a male to female configuration. This Coaxial Right Angle Adapter, RP-SMA Male / Female is made from brass and has a gold finish. An SMA interface design is defined by Mil-STD-348A and has many popular features including a threaded coupling method with a robust center contact and outer conductor interface. SMA's generally work up to 18GHz and are a cost effective way of insuring a highly dependable RF Coaxial connection.
Features
- Provides In-Series Reverse Polarity SMA to Reverse Polarity SMA Connections
- Operates to 6 GHz
- Max VSWR of 1.25:1
- Gold Plated Center Contacts
- Right Angle Body Geometry
Application
- Part 15 Reverse Polarity System Interconnect
- General Purpose Lab
- Test and Measurement Applications
Original: $10.95
-70%$10.95
$3.28Product Information
