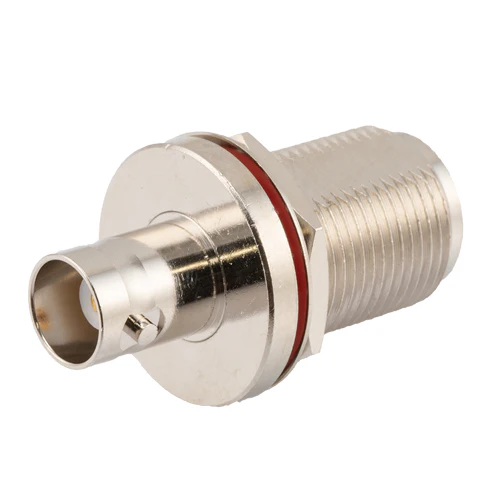

Coaxial Adapter, N Female / BNC Female Bulkhead

Product Datasheet

These L-com RF Coaxial Adapters are used to interface between Type N to BNC with coaxial connections. The LCAD30032 is a straight bulkhead adapter with a female to female configuration. This Coaxial Adapter, N Female / BNC Female Bulkhead is made from brass and has a nickel finish. The Type N interface design is defined by Mil-STD-348A and has many popular features including a threaded coupling method with a robust center contact and outer conductor interface. Type-N adapters generally operate to 12 GHz but precision versions will operate to 18 GHz. The larger size provides a very secure and robust interface and is often used as the output port on RF equipment. Type-N adapters are often used as port proetectors insuring that exepnsive test equipment ports are not damage during repeated use. BNC adapters interface design is defined by Mil-STD-348A and has no tool required bayonet mount coupling mechanism with a robust center contact and outer conductor interface. BNC's generally work up to 3 GHz and are a cost effective way of insuring a highly dependable RF Coaxial connection.

Features

• Provides Between Series N to BNC Connections
• Operates to 4 GHz
• Max VSWR of 1.3:1
• Gold Plated Center Contacts
• Bulkhead Mount

Application

• General Lab Use
• Cable to Cable Connection
• System Interconnect up to 4 GHz
