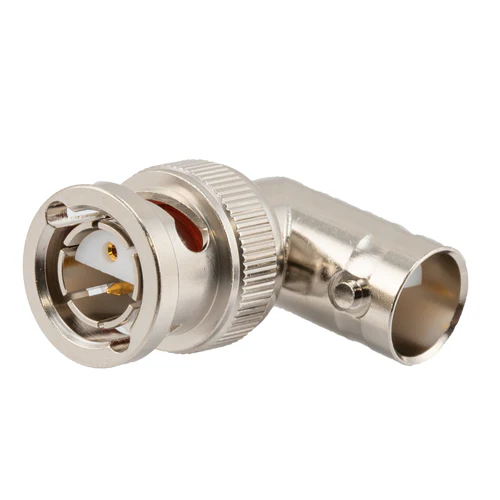

Coaxial Right Angle Adapter, 78 Ohm BNC Twinax Plug / Jack

Product Datasheet

These L-com RF Coaxial Adapters are used to interface between BNC Twinax to BNC Twinax with coaxial connections. The LCAD30025 is a right angle adapter with a plug to jack configuration. This Coaxial Right Angle Adapter, 78 Ohm BNC Twinax Plug / Jack is made from brass and has a nickel finish. The Twin-Ax BNC has twn contacts inside the connector housing. The coupling mechanism is a boyonet design, the same as a standard BNC. Twin-ax BNC connections are commanly used with Twin-ax cable used in differential pair applications where separate conductors are used to carry the signal of interest. BNC Twinax adapters are ofen required to adapt between connector genders.

Features

• Provides In-Series BNC to BNC Connections
• Gold Plated Center Contacts
• Right Angle Body Geometry

Application

• Differential Signal Cable Interconnect
• Cable to Cable Connection
• General Purpose Lab Use
