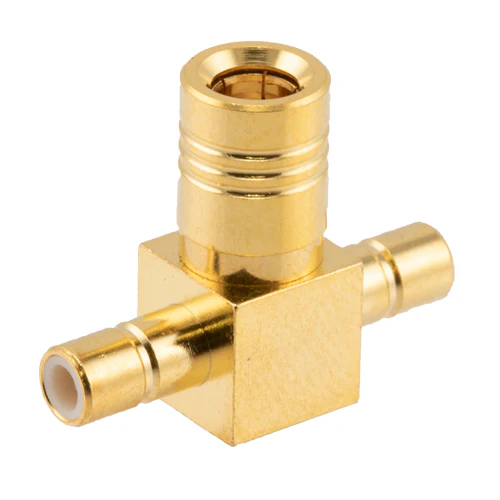

Coaxial Adapter, SMB Tee Jack / Plug / Jack
Product Datasheet
These L-com RF Coaxial Adapters are used to interface between SMB to SMB with coaxial connections. The LCAD30016 is a tee adapter with a jack to plug configuration. This Coaxial Adapter, SMB Tee Jack / Plug / Jack is made from brass and has a gold finish. The SMB interface is smaller than an SMA and uses a snap on connection. An important difference to note is that the SMB Jack (female) interface design has a Male center contact and the SMB Plug (Male) design uses a female socket for the center pin. SMB connectors generally have a maximum operating frequency of 4 GHZ and are available in 50 Ohm and 75 Ohm impedances.
Features
- Provides In-Series SMB Connections
- Operates to 100 MHz
- Max VSWR of 2.1:1
- Gold Plated Center Contacts
Application
- Multi Cable In-Series Interconnect
- Synchronization and Trigger Signal Interconnect
- General Purpose Lab Use
